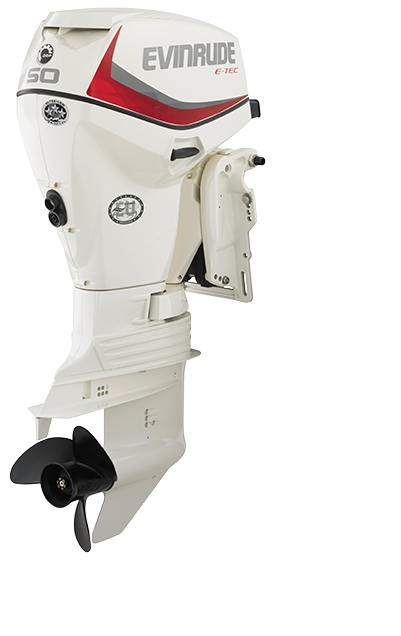

50 HP

LIGHT WEIGHT MEETS HEAVY DUTY

More in the three-cylinder class. Lighter and tougher than the other guys with more electrical output. And with the incredible Evinrude tiller, you're in total control of your engine. And your time on the water.

Download the latest evinrude catalog
Make an Enquiry

50 HP - Model-specific elements

SPECIFICATIONS

Model Weight Shaft Length
E50DGTL 250 lbs / 113 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.9:1
Starting Method Electric
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller
E50DPGL 240 lbs / 109 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.9:1
Starting Method Electric
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Remote (Tiller Accessory)
E50DSL 240 lbs / 109 kgs 20" / 508 mm
Color White
Model Gear Ratio 2.9:1
Starting Method Electric
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Remote (Tiller Accessory)

Common Elements

Limited Warranty 5 Years
Engine type Inline 2-Cylinder E-TEC D.I.
Displacement 52.7 cu in/ 863 cc
Recommended fuel 87 Octane
Emissions compliance EPA 2013 CARB 3 STAR European Union
Recommended Oil Evinrude/ Johnson XD-100 Oil
Oil Tank capacity 2 qt/ 1.9 L
Full Throttle RPM Range 5500-6000 RPM
Alternator output 81 Amps Total/ 25 Amps Net Dedicated
Fuel induction E-TEC Direct Injection w/stratified low RPM combustion mode
Lubrication Multi-Point Targeted Oiling
Bore x Stroke 3.601 x 2.588 in / 91 x 66 mm
Mounting Centers
Integrated Features
Controls Mechanical
