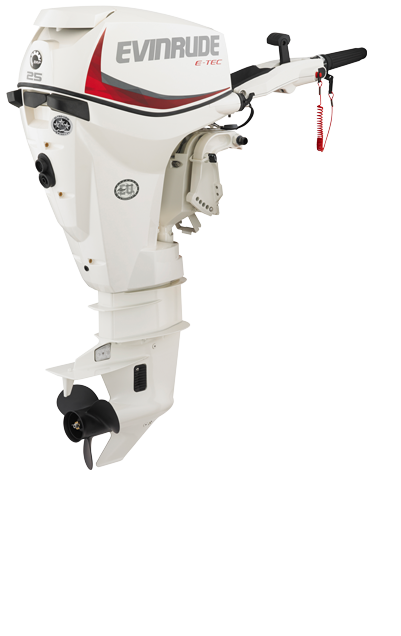

25 HP

LIGHT WEIGHT MEETS HEAVY DUTY

More in the three-cylinder class. Lighter and tougher than the other guys with more electrical output. And with the incredible Evinrude tiller, you're in total control of your engine. And your time on the water.

Download the latest evinrude catalog
Make an Enquiry

VIDEOS

25 HP - Model-specific elements

SPECIFICATIONS

Model Weight Shaft Length
E25DGEL 160 lbs / 73 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Remote (Tiller accessory available)
E25DGTE 162 lbs / 74 kgs 15" / 381 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DGTL 187 lbs / 85 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DPGL 181 lbs / 82 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Remote (Tiller accessory available)
E25DPSL 181 lbs / 82 kgs 20" / 508 mm
Color White
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Remote (Tiller accessory available)
E25DRG 150 lbs / 68 kgs 15" / 381 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Rope (Elec accy avail.)
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DRGL 154 lbs / 70 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Rope (Elec accy avail.)
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DRS 150 lbs / 68 kgs 15" / 381 mm
Color White
Model Gear Ratio 2.15:1
Starting Method Rope (Elec accy avail.)
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DRSL 154 lbs / 70 kgs 20" / 508 mm
Color White
Model Gear Ratio 2.15:1
Starting Method Rope (Elec accy avail.)
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25DTSL 187 lbs / 85 kgs 20" / 508 mm
Color White
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Power Trim and Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25GTEL 166 lbs / 75 kgs 20" / 508 mm
Color Graphite
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)
E25TESL 166 lbs / 75 kgs 20" / 508 mm
Color White
Model Gear Ratio 2.15:1
Starting Method Electric and Rope
Trim Method Manual Tilt
Trim Range -4˚ to 16˚
Tilt Range 65˚
Counter Rotation
Controls Mechanical
Steering Tiller (Remote available)

Common Elements

Limited Warranty 5 Year
Engine type Inline 2-Cylinder E-TEC D.I.
Displacement 35.2 cu in/ 577 cc
Recommended fuel 87 Octane
Emissions compliance EPA 2013 CARB 3 STAR European Union
Recommended Oil Evinrude/ Johnson XD-100 Oil
Oil Tank capacity 1.7 qt/ 1.6 L
Full Throttle RPM Range 5500-6000 RPM
Alternator output 56 Amps Total/ 15 Amps Net Dedicated
Fuel induction E-TEC Direct Injection w/stratified low RPM combustion mode
Lubrication Multi-Point Targeted Oiling
Bore x Stroke 2.992 x 2.5 in / 76 x 64 mm
Mounting Centers
Integrated Features
Controls Mechanical
